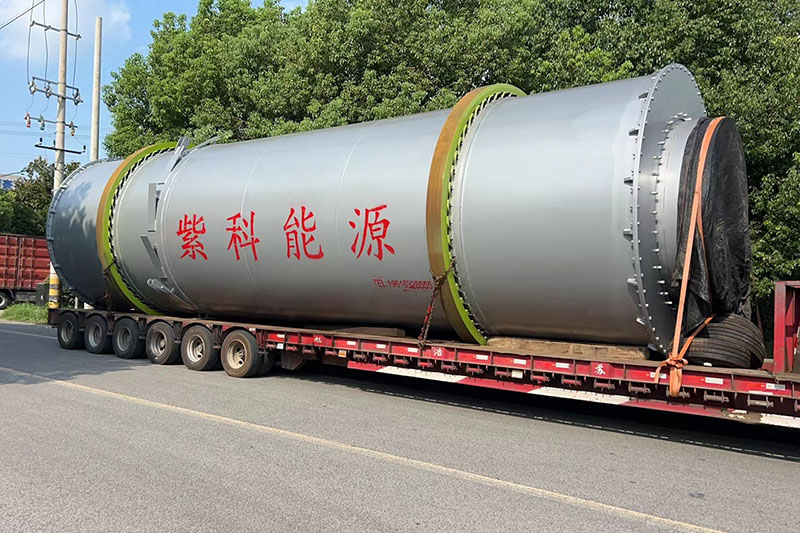

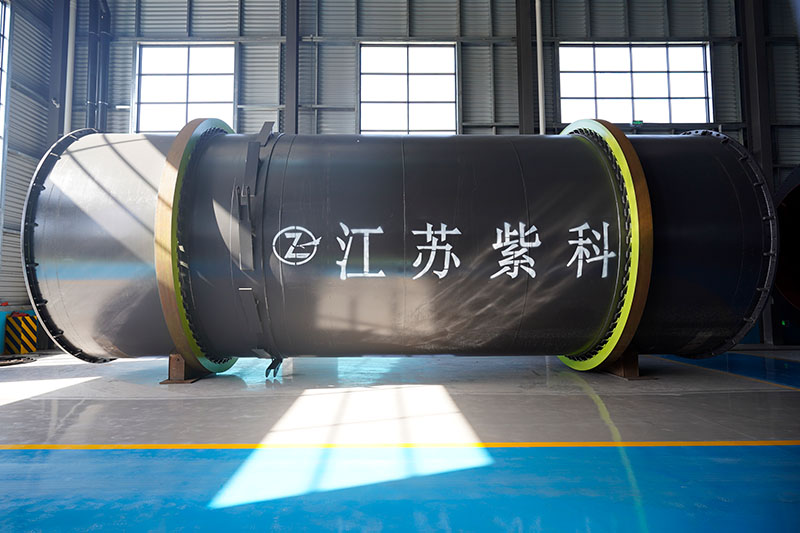

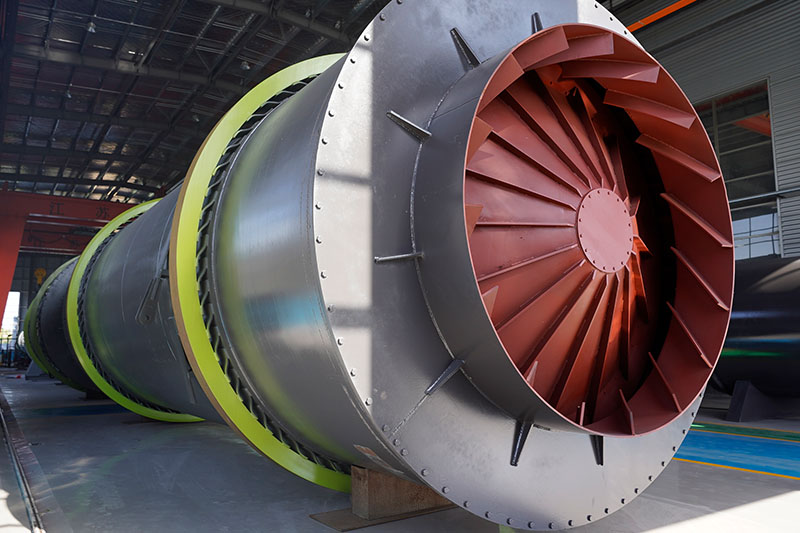

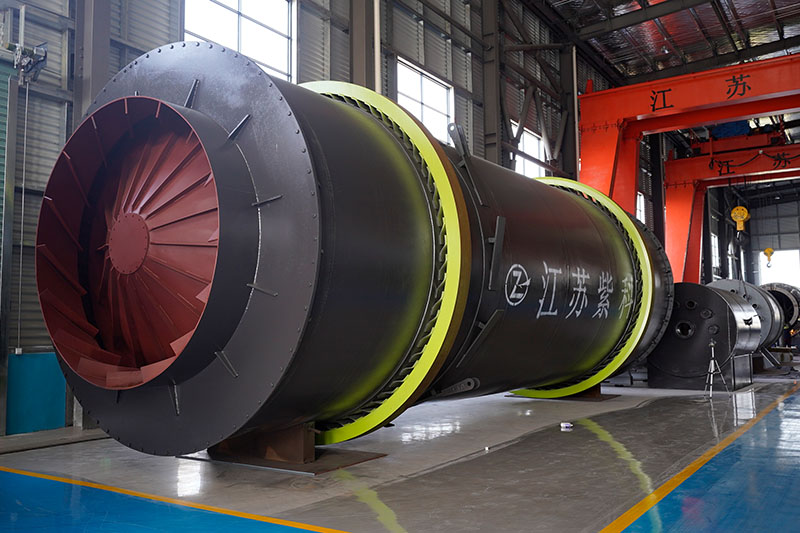

Coal triple drum dryer is an efficient and energy-saving drying equipment, mainly used for drying coal and other materials. It is an improvement on the basis of a single drum rotary dryer, which significantly improves the drying efficiency by increasing the pre drying of wet materials before entering the machine and extending the drying time of wet materials inside the machine. The structure of a three cylinder dryer consists of three concentric cylinders of different diameters stacked together and embedded with each other. This design not only improves the production capacity of the dryer, but also reduces energy consumption.

Working principle

The working principle of a three cylinder dryer is to combine a rotary cylinder dryer with an inclined angle with the principle of an air flow dryer. The material enters the inner layer of the drum from the feeding device, dries through heat exchange, and then moves layer by layer to the outer layer, and is discharged from the drum under the action of hot air. This design allows the material to fully absorb heat during the drying process, extending the drying time and ensuring that the material achieves the desired drying effect.

Scope of application

The three tube dryer is widely used for drying various powder, block, flake materials and various types of slag materials, such as slag, clay, coal slurry, sawdust, vegetable leaves, mineral powder, magnetic powder, etc. Especially suitable for the coal industry, it can handle high moisture coal materials and ensure the drying quality of coal.

Advantages and Characteristics

Efficient and energy-saving: The thermal efficiency of the three tube dryer is as high as about 70%, which is about 35% higher than the traditional single tube dryer, and the standard coal consumption is only 6-8 kg/t.

Small footprint: Compared with a single drum dryer, a three drum dryer reduces its footprint by about 50% and correspondingly reduces infrastructure investment.

Easy to operate: The device is easy to operate, has few malfunctions, high safety, and is suitable for large-scale production.

Strong applicability: It can adapt to various fuels such as coal, oil, and gas, and can handle materials of different particle sizes.
